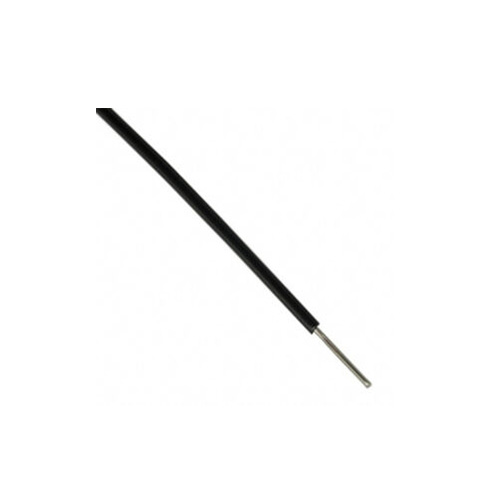

Single Core Unsheathed Cables with solid Aluminium conductor
Specification : Conforms to IS : 694
- Aluminium : High Conductivity Aluminium Conductors as per IS : 8130
- Insulation : PVC Compound suitable for maximum continuous conductor operating temprature of 70 degree ,Type-A Conforming to the requirements of IS:5831
- Core Colour : Red , Black , Yellow , blue , White & Grey , other than these colours any colour shall be used permissible as agreed between the purchaser and the supplier.
- Application : Single Core Unsheathed Cables for fixed wiring with solid Aluminium conductor are used in Domestic/Industrial Wiring.
- Packing : packed in standard lengths of 90/100 Meters . However cables can also be supplied in longer lengths.
| Nominal Cross-Sectional Area of Copper(sq mm) | Aluminium conductor Size (mm) | Normal thickness of Insulation(mm) | Overall diameter (Maximum) mm. | Conductor Resistance at 20 degree (Max) Ohms/Km. |
|---|---|---|---|---|
| 1.5 | 1.40 | 0.7 | 3.4 | 18.1 |
| 2.5 | 1.80 | 0.8 | 4.2 | 12.1 |
| 4.0 | 2.25 | 0.8 | 4.8 | 7.41 |
| 6.0 | 2.75 | 0.8 | 5.6 | 4.61 |
| 10.0 | 3.55 | 1.0 | 7.0 | 3.08 |
