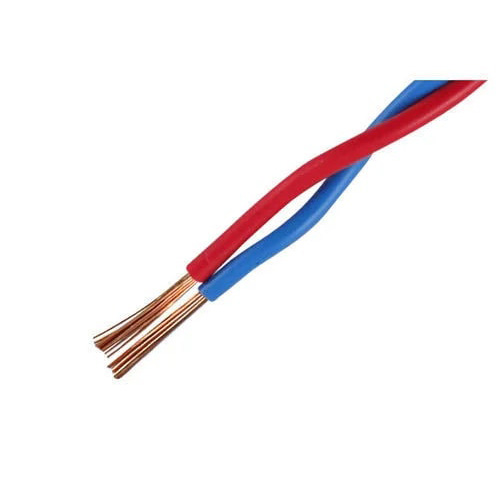

Normal Cross Sectional Area of Copper(Sq mm) | Copper Conductor Size(mm) | Nominal Thickness of Insulation(mm) | Nominal Thickness of Sheath(mm) | Overall Diameter(Maximum)mm | Conductor Resistance at 20(Max)ohms/Km |
---|---|---|---|---|---|
0.16 | 14/40 | 14/0.12 | 0.7 | 2.0 | 123.0 |
0.20 | 18/40 | 18/0.12 | 0.7 | 2.1 | 96.0 |
0.25 | 23/40 | 23/0.12 | 0.8 | 2.3 | 75.0 |
0.45 | 40/40 | 40/0.12 | 0.9 | 2.5 | 43.0 |
0.25 | 14/38 | 14/0.15 | 0.7 | 2.1 | 79.0 |
0.32 | 18/38 | 18/0.15 | 0.7 | 2.3 | 61.0 |
0.41 | 23/38 | 23/0.15 | 0.8 | 2.5 | 48.0 |
0.71 | 40/38 | 40/0.15 | 0.9 | 3.0 | 27.6 |
0.31 | 10/0.20 | 0.8 | 2.4 | 62.0 | |
0.44 | 14/0.20 | 0.8 | 2.5 | 44.0 | |
0.57 | 18/0.20 | 0.9 | 2.8 | 34.5 | |
0.72 | 23/0.20 | 0.9 | 3.0 | 27.0 | |
1.25 | 40/0.20 | 1.0 | 3.5 | 15.5 |
