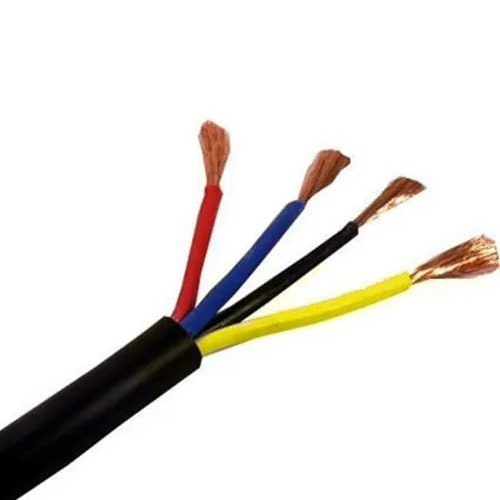

Circular four core Copper Flexible Cords
Specification : Conforms to IS:694
Construction
- Copper : Plain Annealed High Conductivity Copper Conductors as per IS:8130
- Insulation : PVC Compound Suitable for Maximum continuous conductor operating temperature of 70degree,type-A conforming to the requirements of IS:5831
- Core Colors : Red , Yellow , Blue & Yellow-Green or Green
- Application : Circular Four core Copper Flexible Cords are used in Home Appliances/Industrial Applications.
- Packing : Packed in standard length of 90/100 Meters.However cables can also be supplied in longer lengths.
- Sheath : PVC Compound suitable for maximum continuous conductor operating temperature of 70 degree , type-ST-1 conforming to the requirement of IS:5831.
| Normal Cross Sectional Area of Copper(Sq mm) | Copper Conductor Size(mm) | Nominal Thickness of Insulation(mm) | Nominal Thickness of Sheath(mm) | Overall Diameter(Maximum)mm | Conductor Resistance at 20(Max)ohms/Km |
|---|---|---|---|---|---|
| 0.50 | 16/0.20 | 0.6 | 0.9 | 8.2 | 39.0 |
| 0.75 | 24/0.20 | 0.6 | 0.9 | 8.8 | 26.0 |
| 1.00 | 32/0.20 | 0.6 | 0.9 | 9.4 | 19.5 |
| 1.50 | 48/0.20 | 0.6 | 0.9 | 10.5 | 13.3 |
| 2.50 | 80/0.20 | 0.7 | 1.0 | 12.0 | 7.98 |
| 4.0 | 128/0.20 | 0.8 | 1.0 | 14.0 | 4.95 |
